Name: ACHILLES
Type: Cruiser
Keel: 22/02/1904
Launched: 17/06/1905
Completed: 22/04/1907
Builder: Armstrong, Whitworth & Co Ltd
Yard: Elswick
Yard Number: 750
Dimensions: 13550disp - 14500disp, 480.0 x 73.5 x 27.0(draft)ft
Engines: 2 x T3cyl (43, 69 & 77 x 42ins), 23500ihp
Engines by: R & W Hawthorn Leslie, Newcastle
Propulsion: 2 x Screws, 23.0knots
Construction: Steel
Armament: 6 x 1 x 9.2ins, 4 x 1 x 7.5ins, 26 x 1 x 3pdr guns; 3 x 1 x 18.0ins torpedoes
History:
22/04/1907 British Royal Navy
09/05/1920 Broken up
Comments: Member of the Warrior Class of armoured cruisers
1917: Sank the German raider LEOPARD
1918: Classified as a training ship
09/05/1920: Sold for breaking up by TW Ward at Briton Ferry, South Wales


Above photo courtesy of Kevin Blair

Above photo courtesy of US Library of Congress

Above photo copyright of the Imperial War Museum

Above photo copyright of the Imperial War Museum

Above photo copyright of the Imperial War Museum

Above photo copyright of the Imperial War Museum

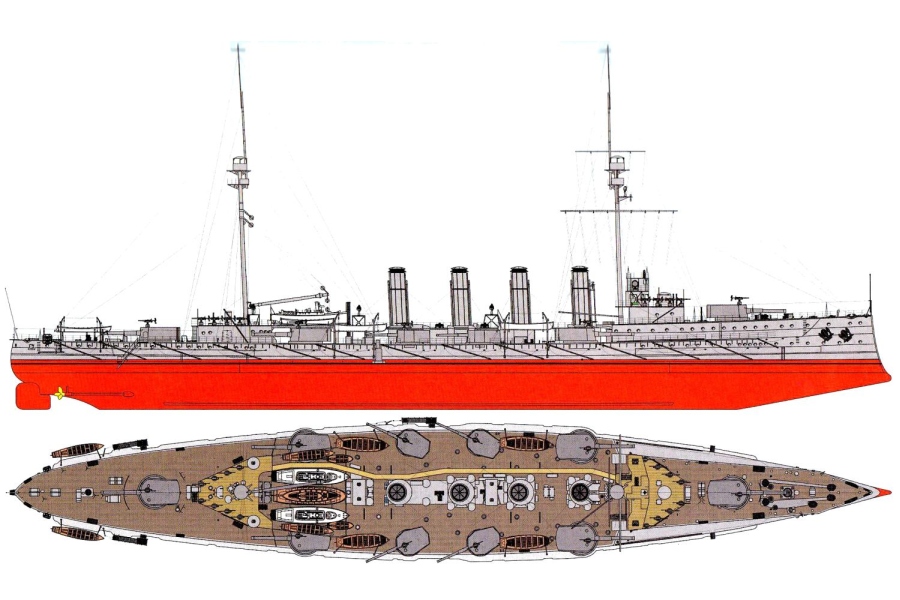

Above Profile & Decks plans copyright of Dr Dan Saranga Click HERE to enlarge
