| Name: | FLYING FOX |
| Type: | Mineweeper |
| Keel: | 09/11/1917 |
| Launched: | 28/03/1918 |
| Completed: | 17/05/1918 |
| Builder: | Swan, Hunter & Wigham Richardson Ltd |
| Yard: | Neptune Yard, Low Walker |
| Yard Number: | 1056 |
| Dimensions: | 1212disp - 1377disp, 258.0 x 34.7 x 10.5(draft)ft |
| Engines: | T4cyl (20.5, 33 & 37, 37 x 30ins), 2750ihp, 207nhp |
| Engines by: | Swan, Hunter & Wigham Richardson Ltd |
| Propulsion: | 1 x Screw, 17.0knots |
| Construction: | Steel |
| Armament: | 2 x 1 x 4.0ins guns; 39 x depth charges |
| History: | |
| 05/1918 | British Royal Navy |
| 24/03/1920 | Royal Naval Volunteer Reserve |
| 1973 | Broken up |
| Comments: | A member of the 24 Class, named after winning horses of the Epsom Derby |
| They were designed to appear double ended to confuse U-Boats | |
| 24/03/1920: Transferred to the RNVR for use as a drillship at Bristol | |
| 1973: Broken up at Cardiff |

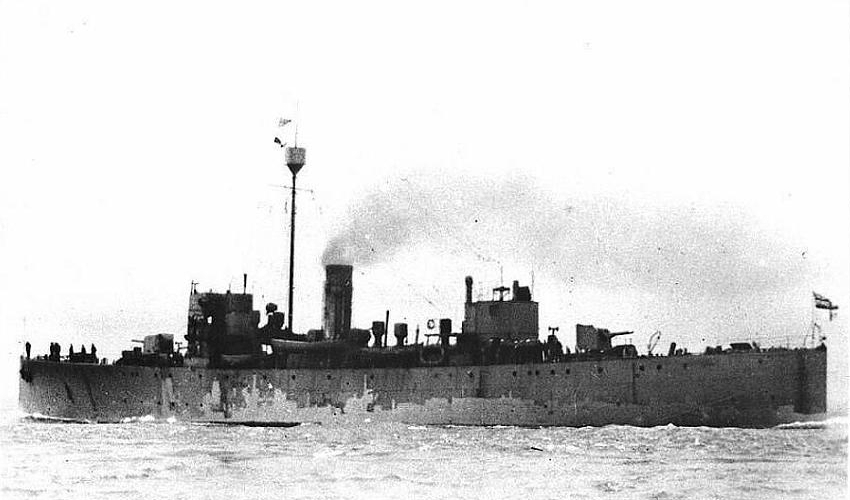

Above photo is courtesy of Photoship

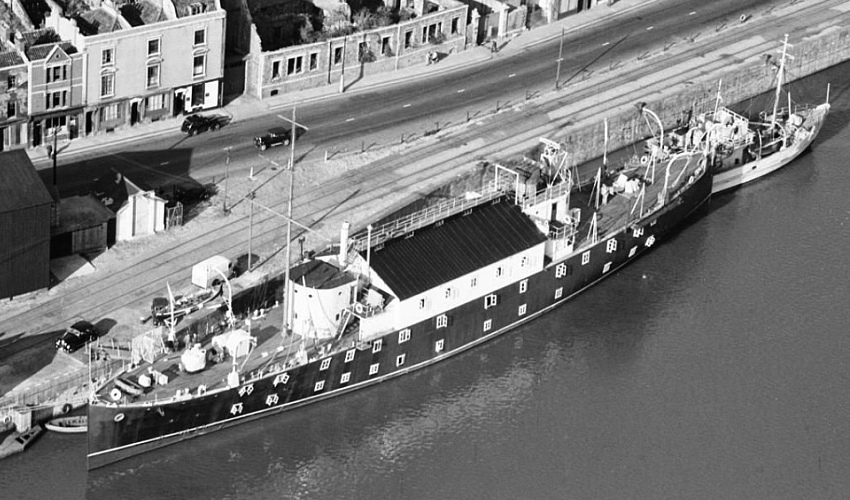

Above photo is copyright of Britain From Above

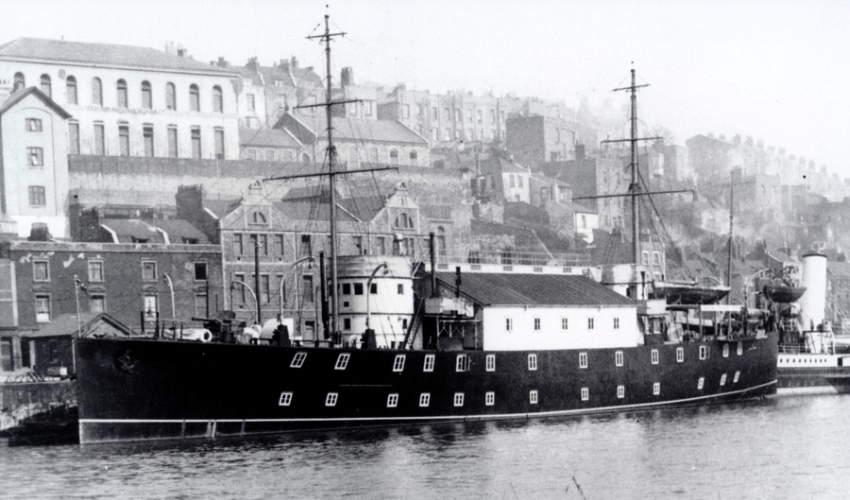

Above: At Bristol as a Drillship. Photo is copyright of Paul Townsend

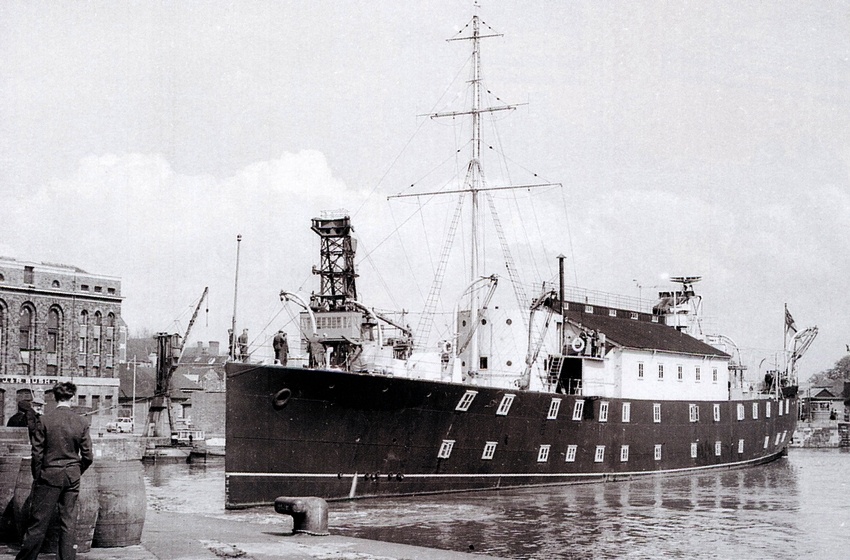

Above: Leaving Bristol for Cardiff. Photo is copyright of Paul Townsend

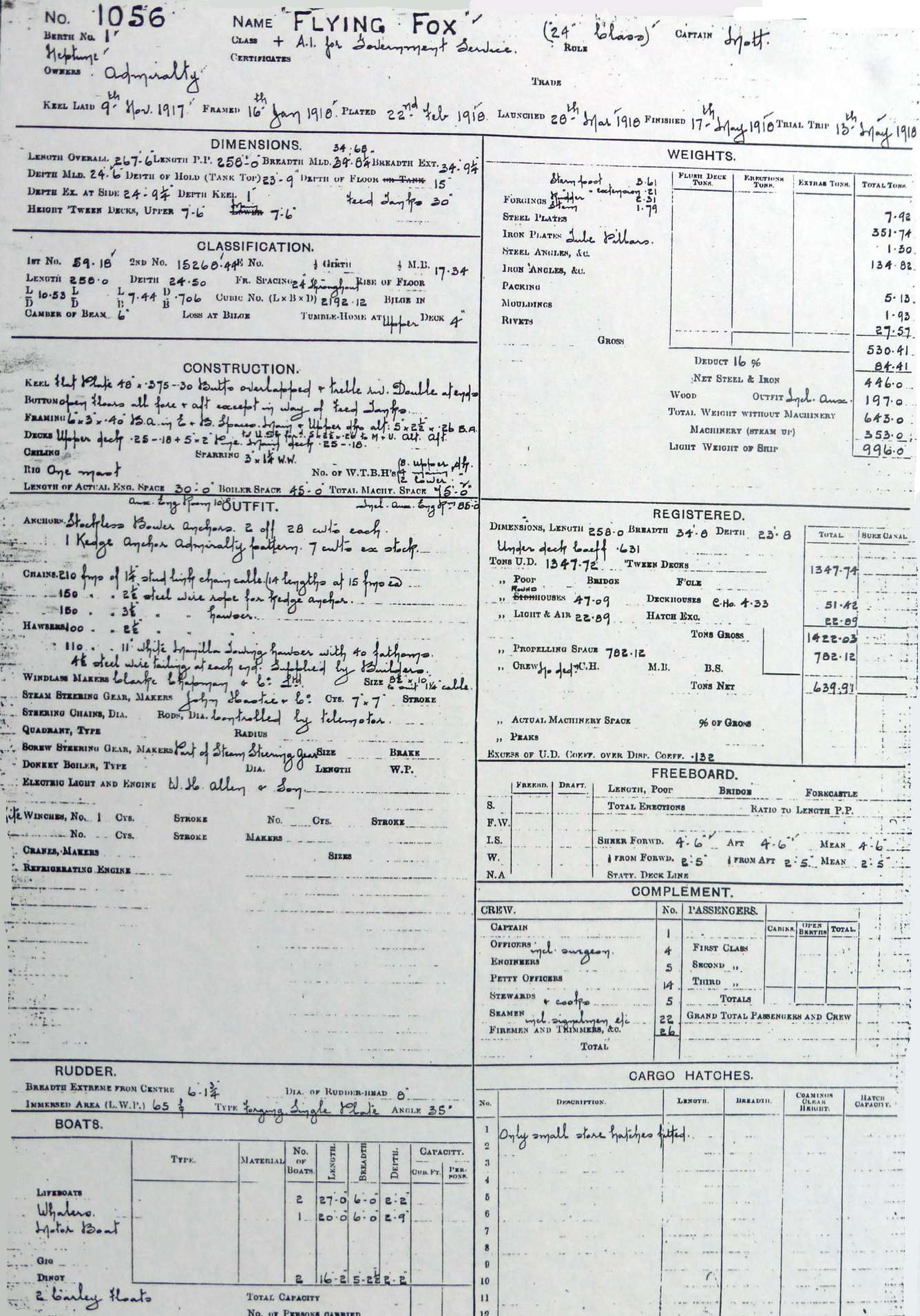

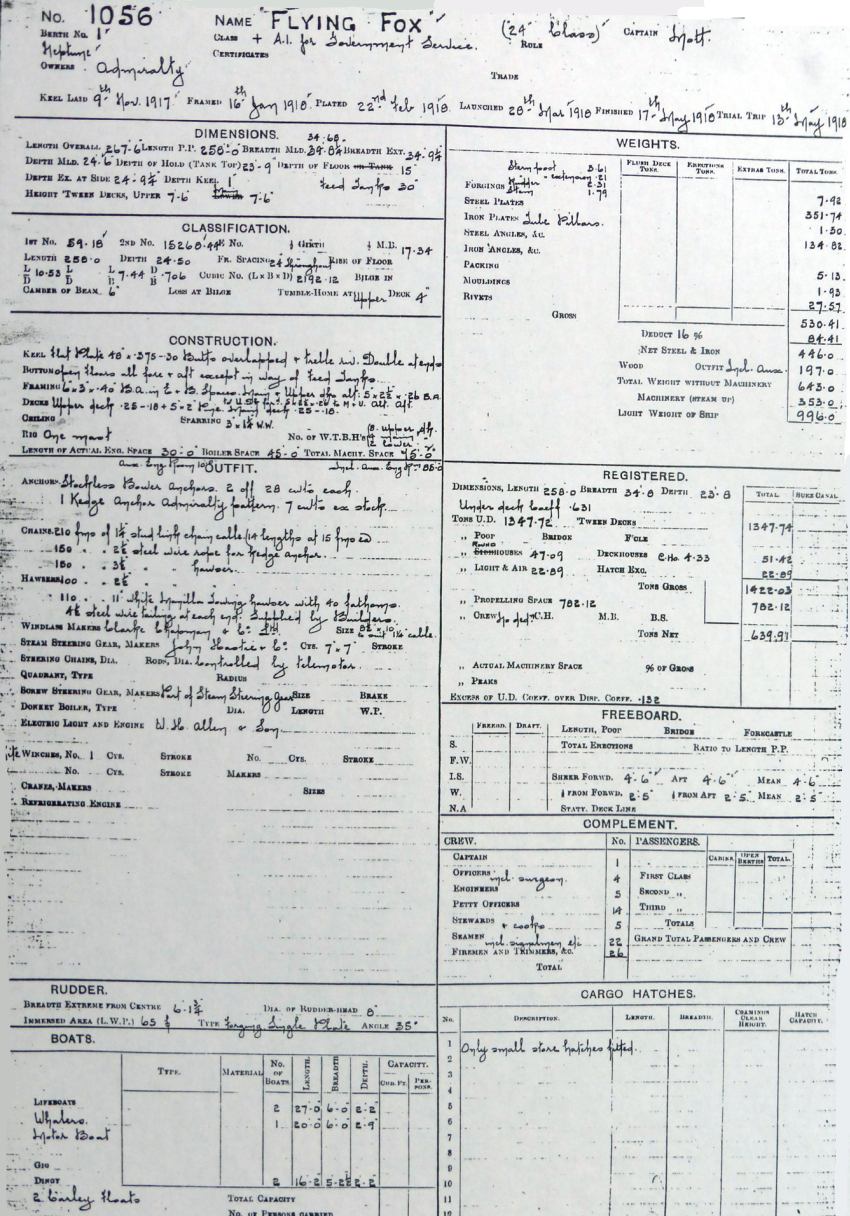

Copied and digitised by Terry Summerson from the original Shipyard Data Books. Click HERE to enlarge.
Click on enlarged image to magnify even further. Use Browser BACK button to return.
This record is now held by Tyne and Wear Archive Services.

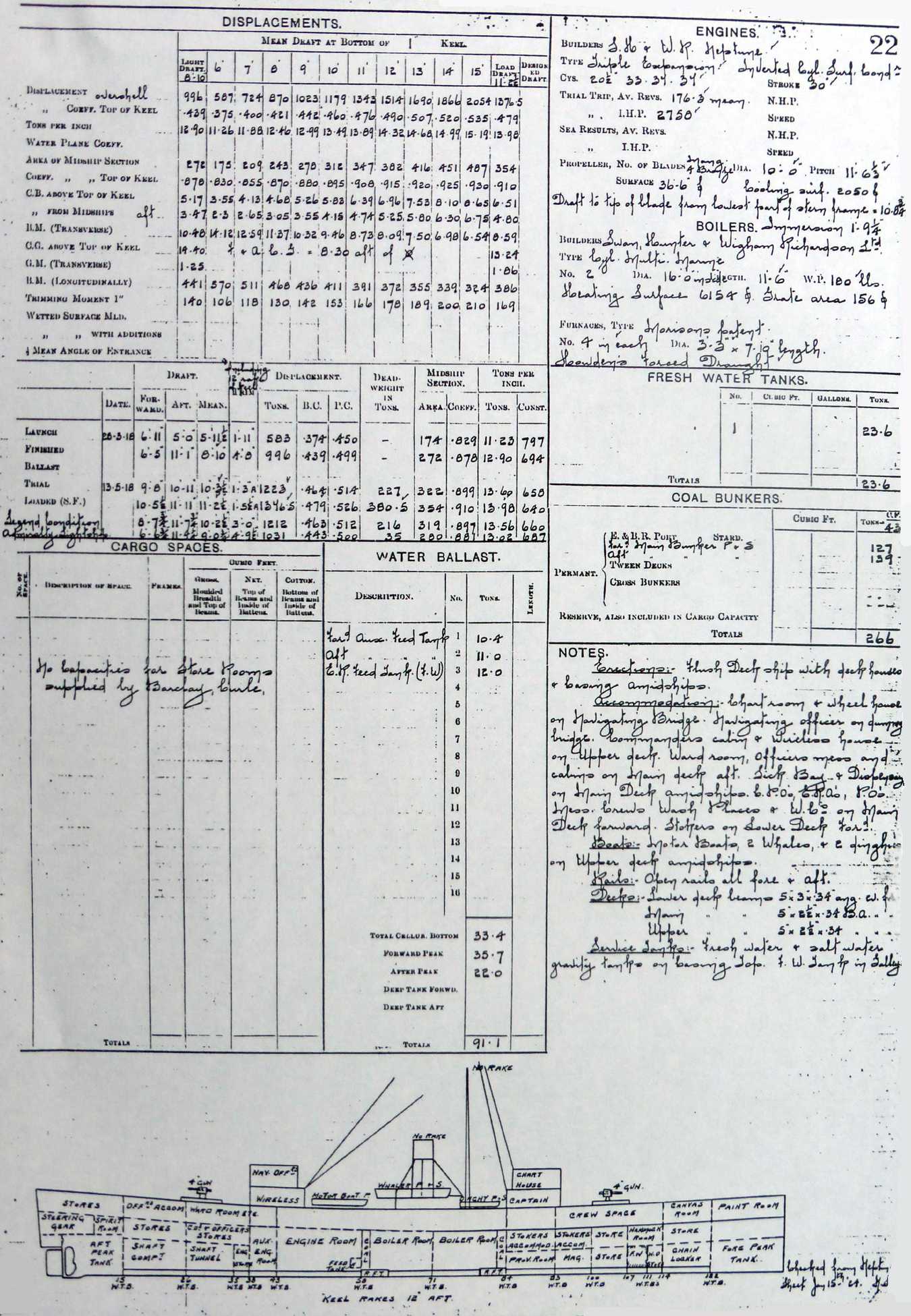

Copied and digitised by Terry Summerson from the original Shipyard Data Books. Click HERE to enlarge.
Click on enlarged image to magnify even further. Use Browser BACK button to return.
This record is now held by Tyne and Wear Archive Services.
